5A02
5A02 is an Al-Mg rust-proof aluminum alloy and cannot be strengthened by heat treatment. This alloy has a lower magnesium content and is more ductile.
High, well formed, and low in strength, but higher than 3A21 alloy. Cold deformation can increase its strength, while reducing plasticityLow. The alloy has good corrosion resistance and is suitable for use in marine environments. The alloy has good weldability.
Content
Chemical composition of 5A02 (%)
| Chemicai composition | |
|---|---|
| Si | 0.4 |
| Fe | 0.4 |
| Cu | 0.1 |
| Mn | 0.15-0.4 |
| Mg | 2.0-2.8 |
| Ti | 0.15 |
| other impurity（singleness） | 0.05 |
| other impurity（sum） | 0.15 |
| AL | remainder |
Physical properties of 5A02
| Aluminum alloy grades and status | 5A02-H32 | |
|---|---|---|
| Tensile Strength Rm/Mpa | 210-260 | |
| Yield Strength Rp0.2/Mpa | 130 | |
| Elongation % | 5 | |
| Hardness/HBWα | 61 | |
| Density（20℃)（g/cm3） | 2.73 |
Applications of 5A02
5A02 alloy is suitable for welded structures and containers with high process plasticity requirements and good corrosion resistance, such as pipes, oil

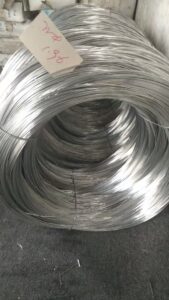

boxes, GIS high-voltage switch housings, flanges, rivets or welding rods and other small load parts made by deep drawing, wires are used Make rivets.
