TA3

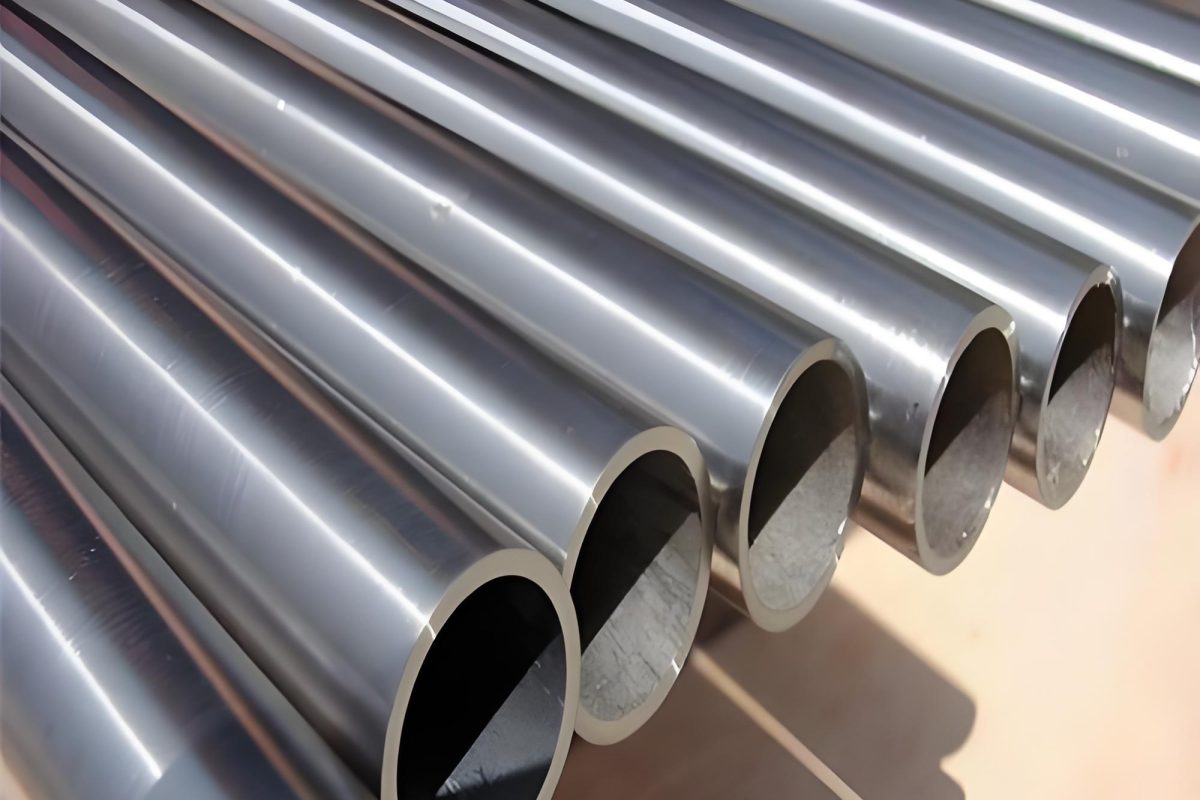

TA3 is industrial pure titanium. They have high mechanical properties, excellent stamping properties, and can be used for various forms of welding and welded joints. The strength can reach 90% of the strength of the base metal, and the cutting performance is good. Titanium tubes have high corrosion resistance to chlorides, sulfides and ammonia able. Titanium’s corrosion resistance in seawater is higher than aluminum alloys, stainless steel, and nickel-based alloys. Titanium is also highly resistant to water impact.
Content
Chemical composition of TA3(%)
| Chemicai composition | (WT%) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (Ti) | remainder | ||||||||||||
| (Fe) | ≤0.40 | ||||||||||||
| (C) | ≤0.10 | ||||||||||||
| (N) | ≤0.05 | ||||||||||||
| (H) | ≤0.015 | ||||||||||||
| (O) | ≤0.30 | ||||||||||||
| other impurity（singleness） | ≤0.1 | ||||||||||||
| other impurity （sum） | ≤0.4 |
Mechanical properties of TA3 alloy
| Mechanical properties at room temperature ≥ | TA1 | TA2 | TA3 | TA5 | TA6 | TA7 | TC1 | TC2 | TC4 | TC6 | TC9 | TC10 | TC11 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tensile Strength MPa | 343 | 441 | 539 | 686 | 686 | 785 | 588 | 686 | 902 | 981 | 1059 | 1030 | 1030 |
| Yield Strength σ0.2MPa | 275 | 373 | 461 | -- | -- | -- | -- | -- | 824 | -- | -- | -- | -- |
| Elongation δ5% | 25 | 20 | 15 | 15 | 10 | 10 | 15 | 12 | 10 | 10 | 9 | 12 | 10 |
| Shrinkage ψ % | 50 | 40 | 35 | 40 | 27 | 27 | 30 | 30 | 30 | 23 | 25 | 25~30 | 30 |
| Impact value αkJ/cm2 | -- | -- | -- | 58.8 | 29.4 | 29.4 | 44.1 | 39.2 | 39.2 | 29.4 | 29.4 | 34.3 | 29.4 |
| High temperature mechanical properties ≥ | |||||||||||||
| Test temperature °C | -- | -- | -- | -- | 350 | 350 | 350 | 350 | 400 | 400 | 500 | 400 | 500 |
| Tensile Strength σb MPa | -- | -- | -- | -- | 422 | 490 | 343 | 422 | 618 | 736 | 785 | 834 | 686 |
| Long-lasting strength σ100MPa | -- | -- | -- | -- | 392 | 441 | 324 | 392 | 569 | 667 | 588 | 785 | 588 |
Applications of TA3
1. Used to make aircraft engine compressor parts;
2. Used to manufacture rockets, missiles and aircraft structural parts, aircraft frames, skins, engine parts, beams, etc.;
3. Piping systems, valves, and pumps corroded by seawater;
4. Power station condensers, petroleum refining and seawater desalination accelerators, and environmental pollution control devices, etc.
5. Chemical heat exchangers, pump bodies, distillation towers.
